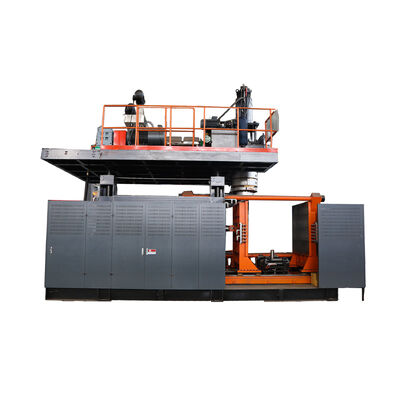

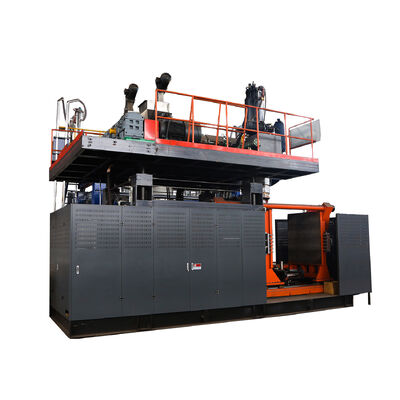

250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation

  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
Miejsce pochodzenia Chiny
Nazwa handlowa HUAYU
Orzecznictwo ISO9001 CE
Numer modelu HYBM-250L-1
Minimalne zamówienie 1 zestaw
Cena 260000 USD
Szczegóły pakowania zostać zdemontowane w wielu częściach transportu pojemników
Czas dostawy 4 miesiące
Zasady płatności T/T, akredytywa
Możliwość Supply 1Set 120 dni

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Średnica śruby 150 mm L/D 30: 1
Materiał śrubowy 38CrMoAlA, azotowanie Wyjście 30szt./godz
Dopływ powietrza 0,8×6 (MPa × metr sześcienny na minutę) całkowita moc 324,5 kW
Średnie zużycie energii (AEC) Około 180 kW na godzinę
Podkreślić

250L Capacity Drum Blow Molding Machine

,

30:1 L/D Ratio Blow Molding Apparatus

,

Energy-Saving Operation Double-Ring Drum Blow Molder
Zostaw wiadomość
opis produktu
250L 1-Layer Double-Ring Drum Blow Molding Machine
Key Advantages
  • High Production Efficiency: Fast cycle times and continuous molding capability deliver 50+ 250L double-ring drums per hour, significantly boosting production output for large-scale manufacturing.
  • Precision Molding Performance: Advanced servo control system and precise die head design ensure uniform wall thickness and consistent double-ring structural dimensions, meeting strict industrial standards.
  • Energy-Saving Operation: Energy-efficient motor and heat recovery technology reduce power consumption by 15-20% compared to traditional machines, cutting long-term operational costs.
  • User-Friendly Operation: Intuitive touch screen HMI with pre-set molding parameters minimizes training time and simplifies daily production adjustments.
  • Durable Equipment Build: High-strength steel frame and wear-resistant components provide a service life of over 10 years with minimal maintenance.
  • Versatile Compatibility: Optimized for 250L 1-layer double-ring drums but adjustable for different plastic materials (HDPE/PP) and similar-sized barrel products.
  • Stable Double-Ring Forming: Dedicated mold and air pressure control unit ensure rings have strong load-bearing capacity without deformation, meeting stacking and transportation requirements.
  • Low Material Waste: Precision material feeding system and optimized parison control reduce plastic scrap rate to less than 3%, lowering raw material costs.
Energy Configuration Specifications
Component Specification
Extruder Driving Power 160kw Siemens Independent Air Cooler
Hydraulic Main System Motor Power 35.6KW Huichuan Servo Motor
Wall Thickness Control Motor Power 7.5 KW
Heating Power of Extrusion System 7 pcs * 7KW/pc
Power of Die Heating 7 pcs * 6KW/pc
Air Supply 0.8*6 (MPa * Cubic meter per minute)
Cooling Water Consumption 0.3*20°*30 (MPa * degree * Cubic meter per hour)
Total Power 324.5KW
Average Energy Consumption (AEC) Approximately 180kw per hour
This industrial blow molding machine is engineered for high-volume production of 250L double-ring drums, combining precision engineering with energy-efficient operation for optimal manufacturing performance.
